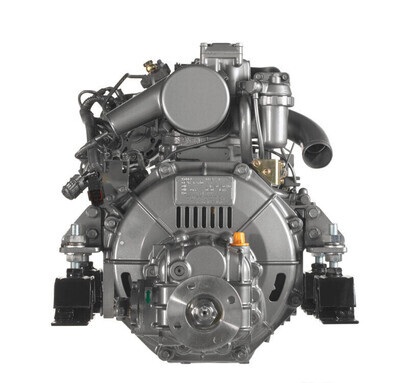

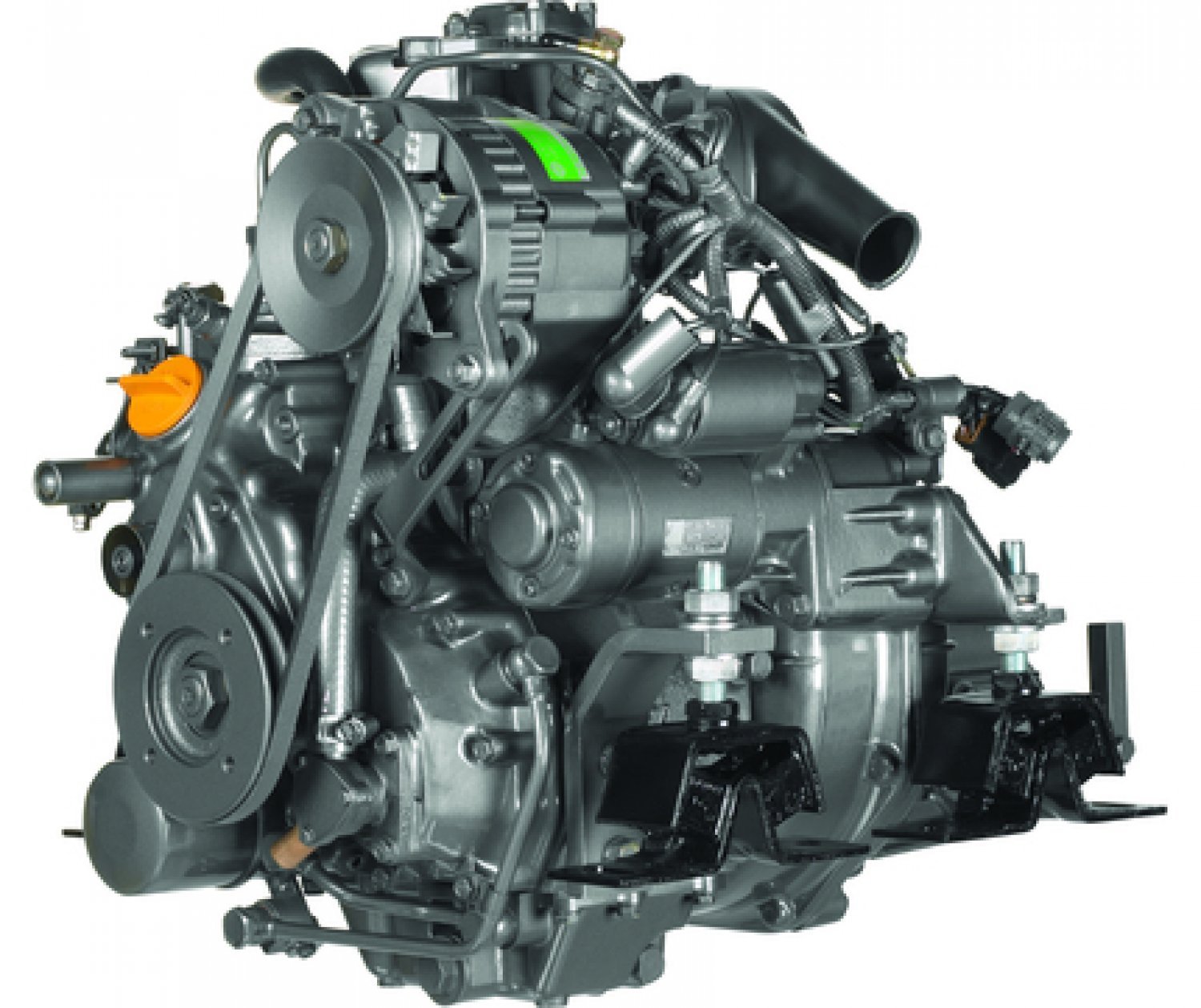

Yanmar 1GM10 Marine Diesel Engine: Reliable 9hp Power
The Unmatched Workhorse for Sailboats and Small Craft
Introduction
For over two decades, the Yanmar 1GM10 marine diesel engine has been the undisputed champion of reliability for sailors and small craft owners. At Wave Inboard Motors, we’ve installed, serviced, and repowered countless vessels with this legendary 9hp marine diesel engine, giving us unparalleled hands-on experience with its simple, robust design. It’s the engine you install and then forget about, season after season, thanks to its legendary Yanmar durability.
This single-cylinder powerhouse was engineered specifically for the marine environment, making it the ideal sailboat diesel engine for auxiliaries in the 25-35 foot range. Its compact size, exceptional fuel efficiency, and raw torque output provide dependable power for charging batteries and making headway in challenging conditions. When you’re considering a marine engine repower, the 1GM10 represents a benchmark for compact, dependable diesel power.
While no longer in production, the demand for remanufactured and well-maintained used units remains incredibly high. This page will provide a deep dive into its specs, compare it to the competition, and outline your best replacement options to keep your vessel powered by proven engineering.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Model | Yanmar 1GM10 |
| Engine Type | Single-cylinder, 4-stroke, water-cooled diesel |
| Displacement | 0.305 L (305 cc) |
| Max Output | 9 HP (6.6 kW) @ 3600 RPM |
| Bore x Stroke | 78 mm x 64 mm |
| Compression Ratio | 23:1 |
| Cooling System | Direct Seawater Cooling |
| Starting System | 12V Electric Start |
| Alternator Output | 12V – 35A |
| Dry Weight | 66 kg (145 lbs) |
| Dimensions (LxWxH) | Approx. 510mm x 450mm x 510mm |
| Gear Ratio | 2.62:1 (Standard) |
Competitor Comparison Table
| Feature | Yanmar 1GM10 (Diesel) | Volvo Penta MD5B (Diesel) | Universal Atomic 4 (Gasoline) |
|---|---|---|---|
| Engine Type | Single-Cylinder Diesel | Single-Cylinder Diesel | Inline-4 Gasoline |
| Power (HP) | 9 HP @ 3600 RPM | 7 HP @ 3000 RPM | 30 HP @ 3500 RPM |
| Fuel Efficiency | Excellent (Very low fuel consumption) | Very Good | Poor (Higher consumption, fuel vapor risk) |
| Weight | 145 lbs (66 kg) | 187 lbs (85 kg) | 185 lbs (84 kg) |
| Reliability | Exceptional (Simple, robust design) | Good (More complex raw water pump) | Fair (Prone to ignition & carburetion issues) |
| Parts Availability | Excellent (Extensive aftermarket support) | Good (Older parts can be scarce) | Good (Strong niche community support) |
Verdict: The Yanmar 1GM10 wins on a power-to-weight and reliability basis against its direct diesel competitor, the Volvo MD5B. While the Universal Atomic 4 offers more horsepower, its gasoline nature presents significant safety and reliability drawbacks. The 1GM10’s diesel efficiency, safety, and legendary durability make it the superior choice for serious sailors.
Replacement Options Table
| Consideration | Keep & Rebuild Old 1GM10 | Buy Remanufactured 1GM10 | Upgrade to Modern Equivalent (e.g., Yanmar 1GM10’s successor) |
|---|---|---|---|
| Condition | Unknown longevity, worn parts | Like-new, zero hours, all new wear parts | Brand new, modern technology |
| Warranty | None (Parts & Labor on repairs only) | Full 1-Year Parts & Labor Warranty | Full Manufacturer Warranty (Typically 2-3 Years) |
| Power | Original 9HP (if restored properly) | Original 9HP (tested and guaranteed) | Often slightly more HP & torque (e.g., 12-15HP) |
| Noise/Vibration | May be high due to wear | Restored to factory vibration levels | Smoother, quieter modern design |
| Total Project Cost | Variable (Can be high with hidden issues) | Known, fixed cost for a turn-key solution | Highest (includes potential drive train modifications) |
Expert Recommendation: For most owners, a professionally remanufactured Yanmar 1GM10 offers the perfect balance of cost, performance, and peace of mind. You retain the engine’s perfect fit and proven mechanics without the gamble of a simple rebuild, and it comes with a warranty that a patchwork repair job cannot offer. It is the most cost-effective path to reliable power without the high expense and potential modification needs of a brand-new modern engine.
Pros and Cons Table
| Pros | Cons |
|---|---|
| Legendary Reliability & Durability | No longer in production (new) |
| Exceptional Fuel Efficiency | Single-cylinder vibration can be pronounced |
| Simple to Service & Repair | Direct seawater cooling requires diligent maintenance |
| Extremely Compact & Lightweight | Lower power output than modern equivalents |
| Massive Global Parts & Knowledge Support | Alternator output is limited for high electrical demands |
